ASK-150 DIY Sensor conversion kit for manual taps

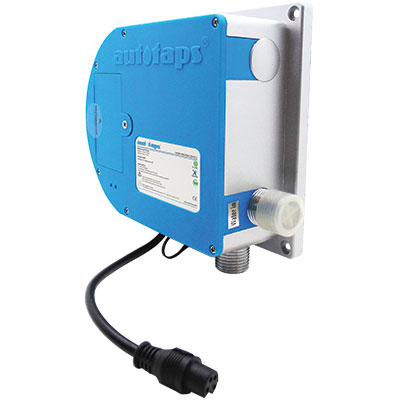

ASK-150 Sensor kit

ASK-150DIY Sensor conversion kit for manual taps

Product Info

  • Features
  • Technical Information
  • Dimension
  • Contents
  • Sensor Holders
  • Temperature Control
  • Remote Control

Easy installation and implementation
Single solenoid valves
Solenoid valve with high 'hot water' tolerance
Ultrasonic-sealed built-in transformer
LED light power indicator
Wall-mountable optional bracket
Works under low water pressure
IP54 Protection
Splash-proof inner-ridge rubber seals
Inner rubber seal for higher protection from elements
Independent battery compartment
Durable and light outer-shell material construction
Compatible with IRC/FRC Sensor Remote Control
Water pressure required: 0.75-7 Bar (1 bar or above for best performance)

Sensor cable length: 176cm
Sensing distance: 10-27cm (Adjustable)
Hot water tolerance: 75° (approx.)
Respond time: 1 Second
Diameter of 'inlet' pipes - Control box: G1/2”
Diameter of 'outlet' pipes - Control box: G1/2"
Water pressure range: 0.50 (Min) - 7 Bar (Max)
Voltage: DC6V or AC220V-240V (6V Output)
Battery Consumption (DC): 4xAA alkaline batteries (2 years lifespan based on 100 cycles a day)
Power consumption: =0.3mW
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Pipe Threading: British Standard Whitworth (BSW)

Tip:
Your choice of manual tap can be any manual tap with a single supply.

Note:
This sensor kit is designed for taps only and it's not waterproof.
Warranty void if used for any other installation purposes/applications other than for taps.


ASK-150 Sensor Kit Installation Layout

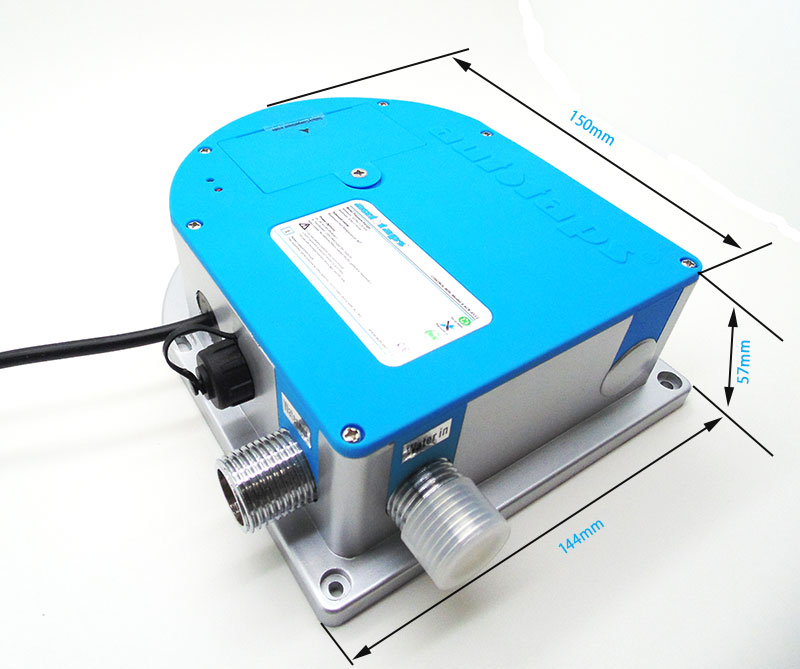

ASK-150 Control box Dimension



1x Infrared Sensor(Wall/Deck-mounted sensor holder of your choice: SH-212, SH-213 or SH-214)
1x Control box
1x 3-pin AC UK cable
1x Built-in Transformer
1x Control box 'wall-mounting' clip
Screws and Manual

Sensor Type 1: SH-212 'Deck-mounted' Design

SH-212 Sensor Holder 'deck-mounted'.
SH-212 Dimension

Sensor Type 2: SH-213 'Wall-mounted' Design

SH-213 Sensor Holder 'deck-mounted'.
SH-213 Dimension

Sensor Type 3: SH-214 'Wall-mounted' Design

SH-214 Sensor Holder 'deck-mounted'.
SH-214 Dimension




OPTION 1: ATV-9004C


ATV-9004C Control box ATV-9004C
This thermostat can be connected directly to the control box using its 1/2" female outlet connector. This method is usually the quickest way to setup installation.



OPTION 2: ATV-9004B



ATV-9004B Control box connection ATV-9004C
This thermostat has a 'wall-mounting' bracket that can be mounted on the wall and linked to the control box 'inlet' via a connecting pipe or a flexible hose (not supplied).

TIP:
You can run up-to three (3) sensor taps (maximum) with one thermostat. Water pressure of both hot and cold supplies must be at least 3 bar.






OPTION 3: ABV-0012



ABV-0112 and Control box connection ABV-0012
This is a manual blending valve, adjustable by hand only. There's no thermostatic mixing element inside. Any desired temperature can only be achieved 'manually' by turning the knob clockwise or anti-clockwise by hand.






IRC-613 Remote Control




IRC-613 Sensor remote control

FRC-613 Sensor remote control

Sold separately

 Flow time increase

FLUSH/RUN Water: Flow Time Increase
When this button is pressed once, it will increase water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ increment.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases water flow time by 5s. For example, press 1 time =5s, press 2 times= 10s, 3 times= 15s etc.

NOTE:
Each key press must be registered by sensor module first before setting another parameter. For example, if you want the tap to run for 10 seconds,  press this key once and let it register (which equals 5s) and press it again the second time to increase it from 5s to 10s and so on.
Flow time decrease

FLUSH/RUN Water: Flow Time Decrease
When this button is pressed once, it will decrease water flush/flow time by ‘5 seconds’. Each key press represents 5 seconds ‘flow time’ decrement.

HOW TO:
With remote control facing/pointing towards the sensor, press once, LED light flashes 3 times. Each key press will decreases water flow time by 5s. For example, press 1 time =-5s, press 2 times= -10s, 3 times= -15s etc.

NOTE:
Each key press must be registered by sensor module first before setting another parameter. For example, if you want the flow time to be decreased by 10 seconds,  press this key once and let it register (which equals -5s) and press it again the second time to decrease it from 10s to 5s and so on.

Sensor increase

Increase Sensor Distance
This button will increase the sensor distance by/between 2-5cm.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 3 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment.

*Sensor distance range scope is around/between 7cm-35cm

Sensor decrease

Decrease Sensor Distance
This button will decrease the sensor proximity distance by/between 2-5cm.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 2 LED light flashes. Each key press increases sensor proximity zone, and represents 2-5cm increment.

*Sensor distance range scope is around/between 7cm-35cm

Auto Search button

Auto Search
This button allows the 'automatic' settings of the sensor proximity sensor range.

HOW TO:
With remote control facing/pointing towards the sensor, press once, a solid LED light comes on first and briefly followed by 5 LED light flashes. During these flashes, the sensor will auto-calibrate itself and adjust its infrared distance settings in accordance with environment.

This button can also be used to set the sensor distance manually.
For example, once this button is pressed, place hand/object at desired position/distance where you want sensor range to end and it will automatically calculate the distance from sensor module to hand/object.
Stand-by button

Standby
This button will put the sensor on standby or 'inactive' mode. This is particularly useful if the tap needs cleaning or simply trying to put the sensor tap 'out of action' during holiday period. When this mode is active, the sensor will not respond to any interaction with it until it's switched ON again.

HOW TO:
With remote control facing/pointing towards the sensor, press once, LED light comes on and stays on for 2-3 seconds and then goes off, standby mode is now active.

To disable, press once, LED light comes on and stays on for 2-3 seconds ‘twice’ and then goes off. Standby mode is now disabled.
