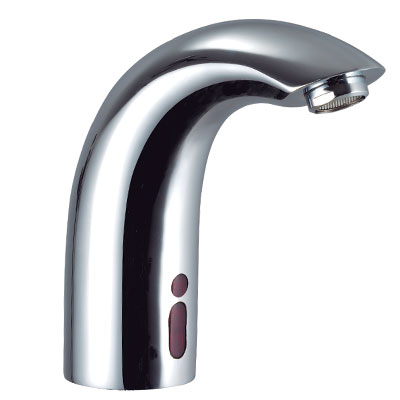

ATO-0038 Short curve neck design sensor tap with manual override 'touch' sensor

ATO-0038 Sensor tap

ATO-0038 Short curve design automatic and manual override touch button

Product Info

  • Features
  • Technical Information
  • Dimension
  • Contents
  • Functions
  • Temperature Control
  • Remote Control

Curve neck design sensor tap
Manual override button (See a demo video here)
Single supply
Mains/4XAA Alkaline batteries(up-to 2yr lifespan)
Hands free infrared activation
Solid-brass outer-shell construction
1x Flexible supply hose

Diameter of 'inlet' pipe: G1/2”
Diameter of 'outlet' pipe: G1/2”
Water pressure range: 0.75 (Min) - 7 Bar (Max)
Sensing distance: 6-27cm
Environment Temperature: 1-45 C
Flow Rate: 6L/Per minute
Max. Hot-water Temperature: 70C
Power consumption: =0.3mW
Respond time: 1 Second
Battery Power Consumption: 4x AA alkaline batteries (up-to 2-year lifespan depending on level of usage)
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Pipe Threading: British Standard Whitworth (BSW)
Noise Class: 1
Finish: Chrome-plated
Voltage: DC6V or AC220V-240V (6V Output)

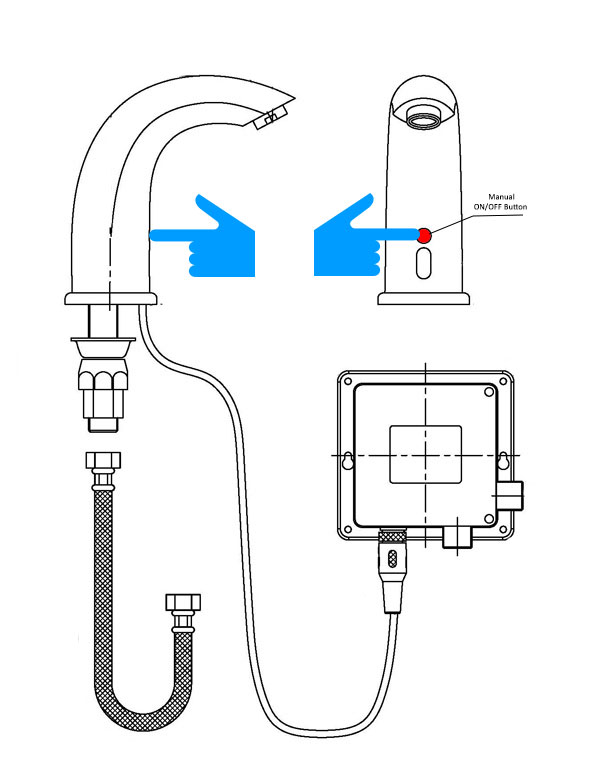

ATO-0038 Dimension

ATO-0038 Dimension

1x Sensor Tap
1x Control Box (*battery compartment inside)
1x Flexible G1/2" *600mm Connection Hose
1x Transformer
Fittings and Screws
