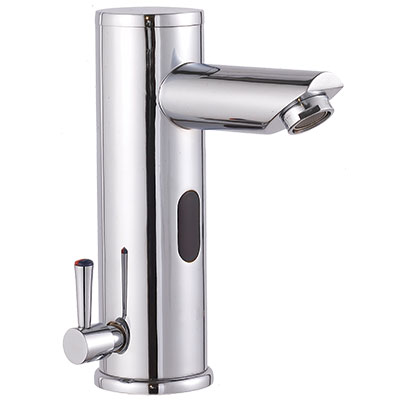

ATT-1031 Sensor Automatic tap with temperature control

ATT-1031 Sensor tap

ATT-1031 Pillar design 'deck mounted'electronic tap with temperature control lever

.

Product Info

  • Features
  • Technical Information
  • Dimension
  • Contents
  • Functions
  • Temperature Control
  • Remote Control

Pillar design sensor tap
Easy installation
Manual blending valve built-in
Manual temperature control lever
Hygienic and upto 70% water conservation
Power: 4XAA Alkaline batteries (external)
Hands free and reliable infrared activation technology
Solid brass construction
Finish: Chrome-plated
2x flexible supply hoses

Diameter of 'inlet' flexible hoses: G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage: DC6V
Power consumption: =0.3MW
Sensing distance: 10-31cm
Respond time: 1 Second
Electricity Consumption: 4xAA alkaline batteries (Up to 2 years lifespan based on 100 times a day)
Silent Consumption: <=0.5mW(DC)
Environment Temperature: 1-45 C
Flow Rate: 5L/Per minute
Pipe Threading: British Standard Whitworth (BSW)

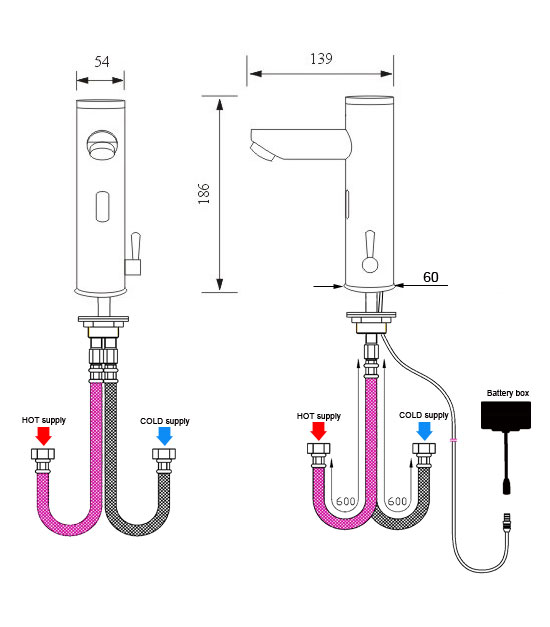

ATT-1031 Dimension

1x Sensor Tap
1x Battery Box (*external battery box)
4x AA Alkaline Batteries
2x Flexible G1/2" *600mm Connection Hoses
Fittings and Screws
